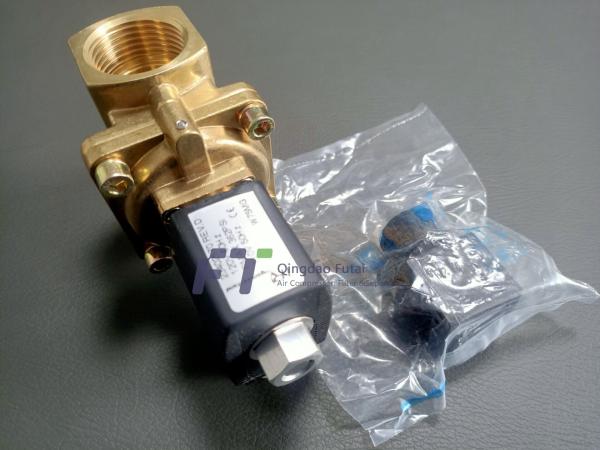

Ingersoll Rand Replacement 23402670 Air Compressor Valves

Ingersoll Rand Replacement 23402670 Air Compressor Valves

Product Description:

Solenoid valve is an industrial equipment that uses electromagnetic control. It is a component used to control fluid automation and belongs to the actuator; it is not limited to hydraulics and pneumatics. The application in our daily life is very extensive. First of all, we have a preliminary understanding of the solenoid valve. The solenoid valve is composed of a magnetic coil and a magnetic core, and is a valve body containing one or several holes. When the coil is energized or de-energized, the operation of the magnetic core will cause the fluid to pass through the valve body or be cut off to achieve the purpose of changing the direction of the fluid.

There are many kinds of solenoid valves. Different solenoid valves play a role in different positions of the control system. The most commonly used ones are check valves, safety valves, directional control valves, speed control valves, etc. The solenoid valve is controlled by electromagnetic effect, and the main control method is controlled by a relay. In this way, the solenoid valve can cooperate with different circuits to achieve the desired control, and the accuracy and flexibility of the control can be guaranteed

Working Principle:

There is a closed cavity in the solenoid valve with through holes at different positions. Each hole is connected to a different oil pipe. In the middle of the cavity is a piston. There are two electromagnets on both sides. Which side of the magnet coil will be attracted to the valve body when it is energized. On the other hand, by controlling the movement of the valve body to open or close the different oil discharge holes, and the oil inlet is normally open, the hydraulic oil will enter the different oil discharge pipes, and then the piston of the cylinder is pushed by the oil pressure. Drive the piston rod, and the piston rod drives the mechanical device. In this way, the mechanical movement is controlled by controlling the current on and off of the electromagnet.

If you don't find the part number you want in my online shop, please do not hesitate to contact us, Maybe I can check it for you. At the same time, we are a factory and can also customize unconventional filter elements for you at any time

23402670 Air Compressor Valves

Ingersoll Rand Replacement Air Compressor Valves

21bar Air Compressor Valves

Ingersoll Rand Replacement 23402670 Air Compressor Valves Images
